2 Port 22mm Drayton Motorised Zone Valve 27100 SPST Switch

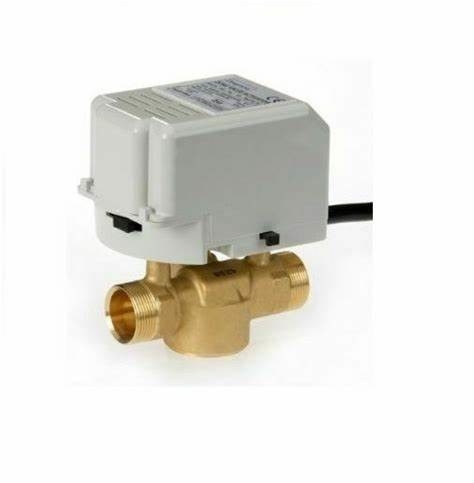

Large Image : 2 Port 22mm Drayton Motorised Zone Valve 27100 SPST Switch

Product Details:

Place of Origin:	China
Brand Name:	YAHE
Model Number:	27100

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	USD1.00 per unit(on negotiation)
Packaging Details:	per unit in single inner box
Delivery Time:	25days
Payment Terms:	T/T
Supply Ability:	10000pcs monthly

Contact Now

2 Port 22mm Drayton Motorised Zone Valve 27100 SPST Switch

Description

Port:	2 Port	Name:	22mm Drayton Motorised Zone Valve
Width:	110 Mm	Size:	22 Mm
Maximum Temperature:	93C	Material:	Brass
High Light:	Drayton Motorised Zone Valve 27100 , 22mm Drayton Motorised Zone Valve , 2 Port Drayton Zone Valve

2 Port 22mm Drayton Motorised Zone Valve 27100 SPST Switch

Product Description

5 Wire SPST Switch
230V a.c. Watt
Replacement Snap on Actuator
Industry Standard Wiring
100% tight shut off

Parameters

Availability

Next Day Delivery

Made To Order

Range Description

DVC Valves

Brand Name

Drayton

Manufacturer Model No

27100

Country Origin

Maximum Pressure

8.6 bar

Years Guaranteed

Width

110 mm

Type

Valves

Size

22 mm

Number of Ports

Maximum Temperature

93C

Material

Brass

Height

120 mm

Diameter

22 mm

Depth

70 mm

Certifications Met

EN 60730-1

Drayton Motorised Zone Valve 27100 Applications

1. Hydronic Control.

2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.

3. Valve designed for cycling (not constantly powered on)

2 Port 22mm Drayton Motorised Zone Valve 27100 SPST Switch 0

Quality Assurance

water tightness: 40psi by gas, no leaks

Package information

Name

Model No.

Size

package

Master case

G.W /kg

Pallet

zone valve

V8043E1012

3/4'' Sweat

1 piece

20pcs

27Cartons

FAQ

Q: customize logo accepted

A: yes,

Q: how about the order quantity and shipping

A: We have the warehouse in the USA, we can deliver the goods within one week

Q: Do you offer a guarantee for the products?

A: Yes, we offer 2 years warranty on our products. and it passed the recycled life test around 10,000times
