Product Details:
|
| Name: | Replace Honeywell 22mm 2 Port V4043h1056 | Body Pattern: | 2 Port Valve |
|---|---|---|---|
| Connection Size: | 22mm | Position: | Normally Closed |
| Flow Capacity: | 3.5CV | Wiring: | 1 Meter |
| Unit Type: | Valve & Actuator | Application: | Home Heating System |
| High Light: | V4043h1056 Motorised Zone Valve,2 Port Motorised Zone Valve,v4043h1056 motorised valve |
||
Replace Honeywell 22mm 2 Port V4043h1056
Product Description

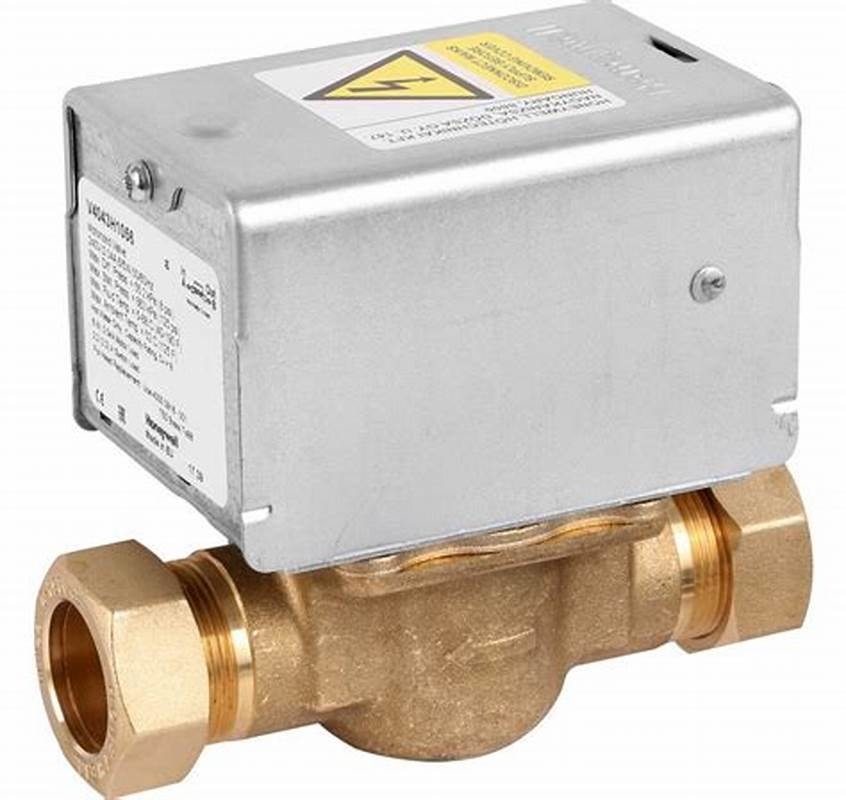

The Replace Honeywell 22mm 2 Port V4043h1056 is classed as 'normally closed', which means that the valve itself will be in a closed state by default whilst the actuator is off. The Replace Honeywell 22mm 2 Port V4043h1056 is a motorised valve which has end switches that enable you to control either the pump or boiler.
Parameters
| Item | Replace Honeywell 22mm 2 Port V4043h1056 |
| Power Supply: | 230 Volts AC 50Hz |
| Switch Rating : | 2.2A |
| Switch Type : | SPST (22mm) SPDT (28mm and 1") |
| Power Consumption : | 6W |
| Electrical Connections : | 1m flying lead heat resistant cable |
| EC Directive : | Conforms to 89/336/EEC & 73/23/EEC |
| Pipe Connections : | 22mm Comp. |
| Auxiliary Switch : | S.P.S.T. K.V. : 6.9 |
| De-Energised State : | CLOSED |
| Differential Pressure for Close Off : | 0.55 bar max |
Applications
1. Hydronic Control.
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.
3. Valve designed for cycling (not constantly powered on)
Options:
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V4043H1056 | 22m compression end | 1 piece | 20pcs | 18 | 27Cartons |
