Product Details:
|
| Name: | Replace Honeywell V4043h 1056 2 Port Zone Valve | Diameter: | 22 Mm |
|---|---|---|---|
| Width: | 112 Mm | Position: | Normally Closed |
| Flow Capacity: | 3.5CV | Maximum Temperature: | 50C |
| Max Close Pressure: | 40PSI | Application: | Home Heating System |
| High Light: | honeywell v4043h 1056 2 port zone valve,22mm honeywell v4043h 1056 2 port zone valve,honeywell v4043h1056 motorised valve |
||

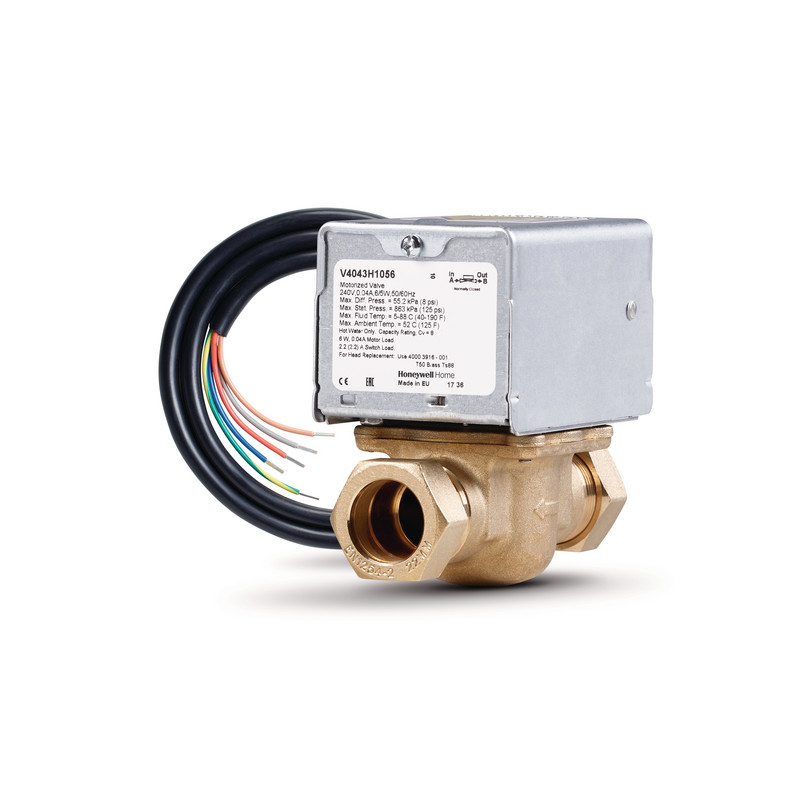

Replace Honeywell V4043h 1056 2 Port Zone Valve
Product Description
Parameters
| Item | Replace Honeywell V4043h 1056 2 Port Zone Valve |
| Power Supply: | 230 Volts AC 50Hz |
| Switch Rating : | 2.2A |
| Switch Type : | SPST (22mm) SPDT (28mm and 1") |
| Power Consumption : | 6W |
| Timings (Nominal) : | On: 12 seconds under power , Off: 6 seconds under spring return |
| Ambient Temperature : | 50°:C max |
| Flow Temperature : | 5°C to 88°C max(Special models available for chilled water applications) |
| Static Pressure : | 8.6 bar max |
| Flow Direction : | As per arrow on valve body |
| Electrical Connections : | 1m flying lead heat resistant cable |
| EC Directive : | Conforms to 89/336/EEC & 73/23/EEC |
| Pipe Connections : | 22mm Comp. |
| Auxiliary Switch : | S.P.S.T. K.V. : 6.9 |
| De-Energised State : | CLOSED |
| Differential Pressure for Close Off : | 0.55 bar max |
Options:
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
Warranty: All new parts come with manufacturers warranty. If the product is found faulty within 28 days of purchase it can be returned to Adlink UK Limited for replacement or refund, you can contact us via the Contact us page. (Please note that if the item requires testing your refund will take approximately 14 days from receipt at Adlink UK Limited.
