Product Details:
|
| Size: | 22mm Compressio End Copper Pipe | Body Pattern: | Double Ways |
|---|---|---|---|
| Voltage: | 220v 240v | Position: | Normally Closed |
| Flow Capacity: | 3.5CV | Wiring: | 1 Meter |
| Max Close Pressure: | 40PSI | Application: | Home Heating System |
| High Light: | 22mm honeywell motorised valve,V4043H1056 honeywell motorised valve,22V two port valve |
||

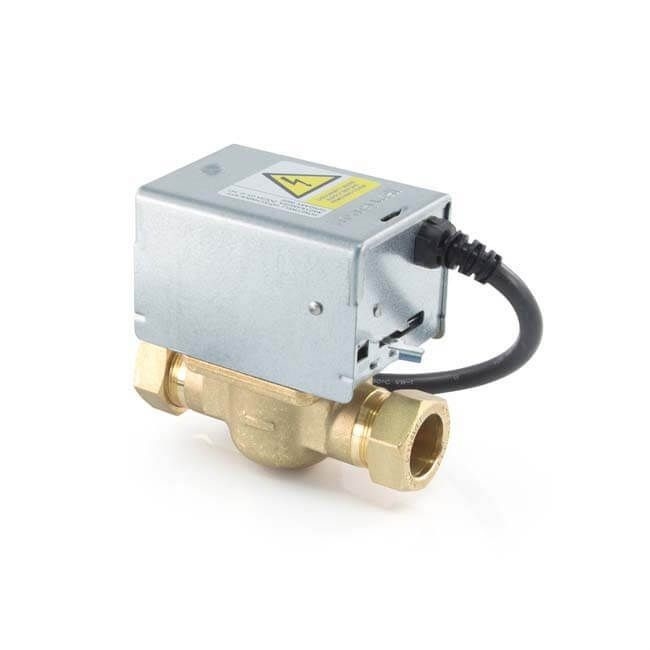

V4043H1056 22VAC 22mm Honeywell 2 Port Motorised Zone Control Valve Home Circulating Hot Water Radiant System
Product Description
This is a fully refurbished part. The quality of the product is assured as all our products are refurbished to the highest standard and quality checked by our experienced engineering team. However, the product might have slight cosmetic marks. All our refurbished products come with 12 months warranty.
Parameters
| Item | V4043H1056 Honeywell Motorised Valve 22mm 22VAC 220-240VAC 2 Port |
| Power Supply: | 230 Volts AC 50Hz |
| Switch Rating : | 2.2A |
| Switch Type : | SPST (22mm) SPDT (28mm and 1") |
| Power Consumption : | 6W |
| Timings (Nominal) : | On: 12 seconds under power , Off: 6 seconds under spring return |
| Ambient Temperature : | 50°:C max |
| Flow Temperature : | 5°C to 88°C max(Special models available for chilled water applications) |
| Static Pressure : | 8.6 bar max |
| Flow Direction : | As per arrow on valve body |
| Electrical Connections : | 1m flying lead heat resistant cable |
| EC Directive : | Conforms to 89/336/EEC & 73/23/EEC |
| Pipe Connections : | 22mm Comp. |
| Auxiliary Switch : | S.P.S.T. K.V. : 6.9 |
| De-Energised State : | CLOSED |
| Differential Pressure for Close Off : | 0.55 bar max |
Applications
1. Hydronic Control.
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.
3. Valve designed for cycling (not constantly powered on)
Options:
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V4043H1056 | 22m compression end | 1 piece | 20pcs | 18 | 27Cartons |
