Product Details:
|
| Name: | Replace Honeywell V4043h 1056 2 Port Zone Valve Normally Closed 22mm | Body Pattern: | 2-way |
|---|---|---|---|
| Voltage: | 220-240VAC, 50/60Hz | Position: | Normally Closed |
| Flow Capacity: | 3.5CV | Wiring: | 1 Meter |
| Max Close Pressure: | 40PSI | Application: | Home Heating System |
| High Light: | 240V 2 Port Motorised Valve,220v 2 Port Motorised Valve,honeywell v4043h 1056 2 port zone valve normally closed 22mm |
||

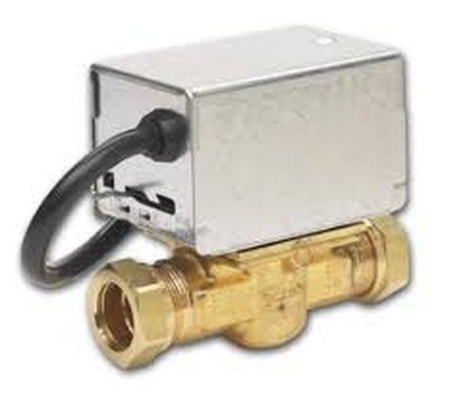

Replace Honeywell V4043h 1056 2 Port Zone Valve Normally Closed 22mm
Product Description
Voltage: 220-240V ~ 50Hz Power consumption: 6W Lead supplied: 1 metre, 5 core Operating temperature range: +5 to +88°C Maximum ambient temperature: +52°C Pipe fitting sizes: 22mm & 28mm compression fitting, 3 /4" & 1" BSP Dimensions and KV values: See diagram
Parameters
| Item | Replace Honeywell V4043h 1056 2 Port Zone Valve Normally Closed 22mm |
| Power Supply: | 230 Volts AC 50Hz |
| Switch Rating : | 2.2A |
| Switch Type : | SPST (22mm) SPDT (28mm and 1") |
| Power Consumption : | 6W |
| Timings (Nominal) : | On: 12 seconds under power , Off: 6 seconds under spring return |
| Ambient Temperature : | 50°:C max |
| Flow Temperature : | 5°C to 88°C max(Special models available for chilled water applications) |
| Static Pressure : | 8.6 bar max |
| Flow Direction : | As per arrow on valve body |
| Electrical Connections : | 1m flying lead heat resistant cable |
| EC Directive : | Conforms to 89/336/EEC & 73/23/EEC |
| Pipe Connections : | 22mm Comp. |
| Auxiliary Switch : | S.P.S.T. K.V. : 6.9 |
| De-Energised State : | CLOSED |
| Differential Pressure for Close Off : | 0.55 bar max |
Applications
1. Hydronic Control.
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.
Options:
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V4043H1056 | 22m compression end | 1 piece | 20pcs | 18 | 27Cartons |
