Product Details:
|
| Name: | Replace Honeywell Motorised Valve V4043h1056 | Body Pattern: | 2-way |
|---|---|---|---|
| Voltage: | 220-240VAC, 50/60Hz | Position: | Normally Closed |
| Size: | 22mm | Wiring: | 1m |
| Max Close Pressure: | 40PSI | Application: | Home Heating |
| High Light: | Normally Closed honeywell motorised valve v4043h1056,honeywell motorised valve v4043h1056,22mm honeywell zone valve v4043h1056 |
||

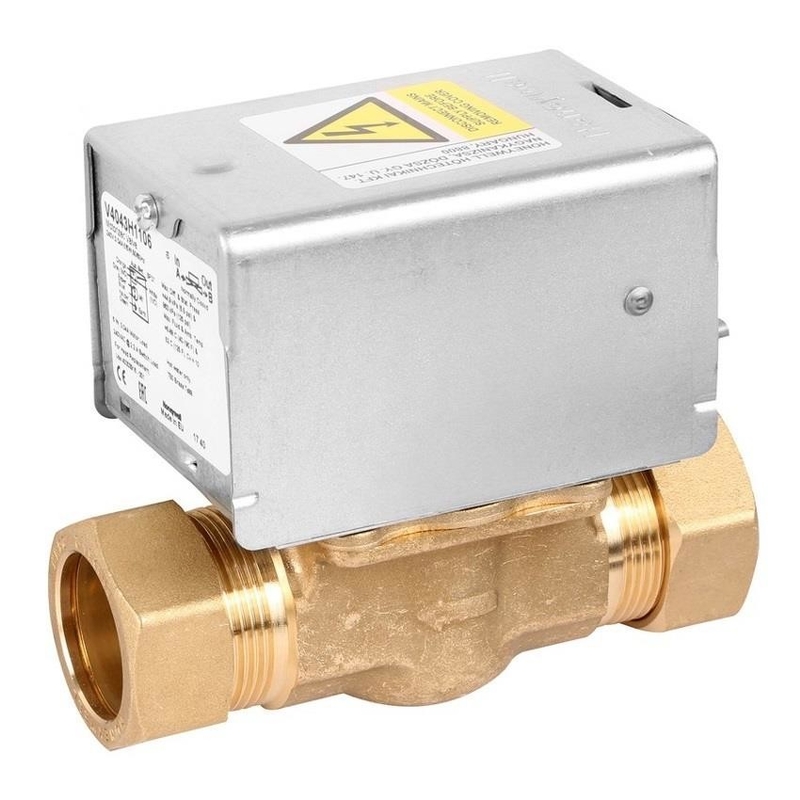

Replace Honeywell Motorised Valve V4043h1056
Product Description
The V4043 series of two port motorised valves has a wide range of flow control applications in domestic and light commercial central heating systems. This 4043H version is normally closed, 22mm compression, SPDT end switch at 8.6 KV and 0.45 bar maximum differential pressure.
Parameters
| Item | Replace Honeywell Motorised Valve V4043h1056 |
| Power Supply: | 230 Volts AC 50Hz |
| Switch Rating : | 2.2A |
| Switch Type : | SPST (22mm) SPDT (28mm and 1") |
| Power Consumption : | 6W |
| Timings (Nominal) : | On: 12 seconds under power , Off: 6 seconds under spring return |
| Ambient Temperature : | 50°:C max |
| Flow Temperature : | 5°C to 88°C max(Special models available for chilled water applications) |
| Static Pressure : | 8.6 bar max |
| Flow Direction : | As per arrow on valve body |
| Electrical Connections : | 1m flying lead heat resistant cable |
| EC Directive : | Conforms to 89/336/EEC & 73/23/EEC |
| Pipe Connections : | 22mm Comp. |
| Auxiliary Switch : | S.P.S.T. K.V. : 6.9 |
| De-Energised State : | CLOSED |
| Differential Pressure for Close Off : | 0.55 bar max |
Applications
1. Hydronic Control.
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.
3. Valve designed for cycling (not constantly powered on)
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V4043H1056 | 22m compression end | 1 piece | 20pcs | 18 | 27Cartons |
