Product Details:
|
| Name: | Replace Honeywell Zone Valve V4043h1056 | Body Pattern: | 2-way |
|---|---|---|---|
| Height (mm):: | 114 | Maximum Working Temperature (C):: | 88 |
| Flow Capacity: | 3.5CV | Maximum Temperature (C):: | 50 |
| Max Close Pressure: | 40PSI | Application: | Home Heating System |
| High Light: | Motorised Diverter Valve V4043h1056,40PSI Honeywell Motorised Diverter Valve,V4043h1056 |
||

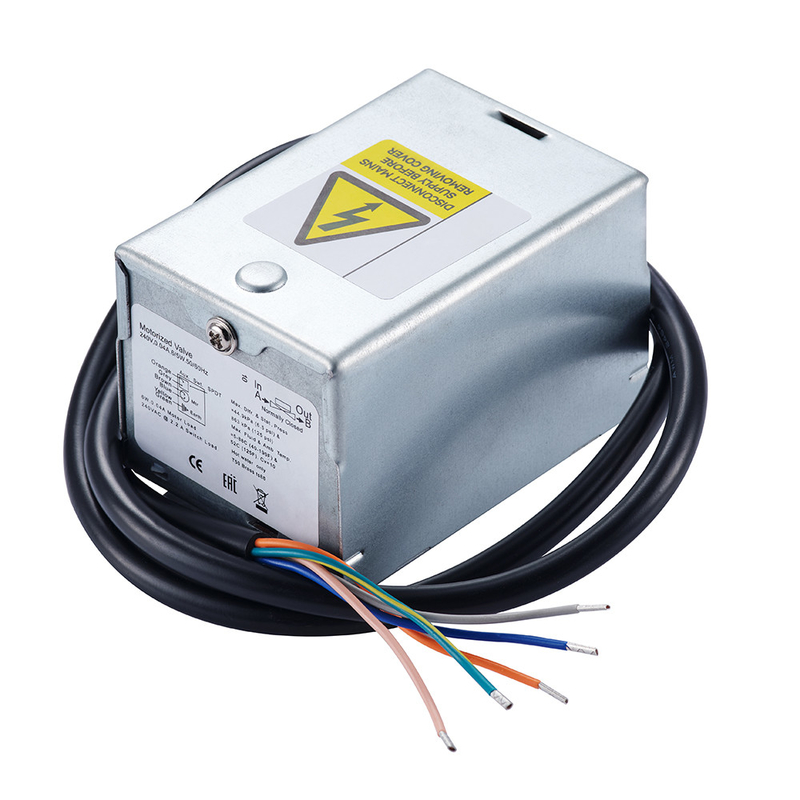

Replace Honeywell Zone Valve V4043h1056
Honeywell Zone Valve V4043h1056 Description
The V4043H1056 Normally closed 22mm features a long-life synchronous motor for smooth, quiet operation plus a convenient auxiliary end switch for switching between boiler, circulator pump, and other devices with a single zone valve.
Honeywell Zone Valve V4043h1056 Parameters
| Connection: | 22mm Compression |
|---|---|
| Connection Size: | 22mm |
| Connection Type: | Compression |
| Control Device: | Wired |
| Length (mm): | 62 |
| Model Number: | V4043H1056 |
| Range: | V4043H |
| Range Type: | DVC Valves |
| Voltage (V): | 230 |
| Warranty: | 1 Year |
| Weight: | 1195.00000 kg |
| Max Temperature: | 50 |
| Max Pressure: | 8.6 |
| Max Set Pressure: | 0.55 bar |
| Connection Size (mm): | 22mm |
| Maximum Temperature (C): | 50 |
| Maximum working temperature (C): | 88 |
| Height (mm): | 114 |
| Supplier Product Code: | V4043H1056/U |
| Type: | Motorised Zone Valve |
| WEEE Compliant: | N |
| Width (mm): | 102 |
| Application: | Domestic Central Heating SystemLight Commercial Central Heating System |
Honeywell Zone Valve V4043h1056 Applications
1. Hydronic Control.
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.
3. Valve designed for cycling (not constantly powered on)
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V4043H1056 | 22m compression end | 1 piece | 20pcs | 18 | 27Cartons |
