Product Details:
|
| Name: | Replacement Honeywell M847d1012 Motorized Damper Actuator | Motor: | Spring Return |
|---|---|---|---|
| Height: | 3-3/8" | Application: | Air Quality |
| Voltage: | 24volt | Usage: | Honeywell M847d1012 |
| High Light: | Motorized Damper Motor Actuator,24v Damper Motor Actuator,m847d1012 actuator replacement |
||

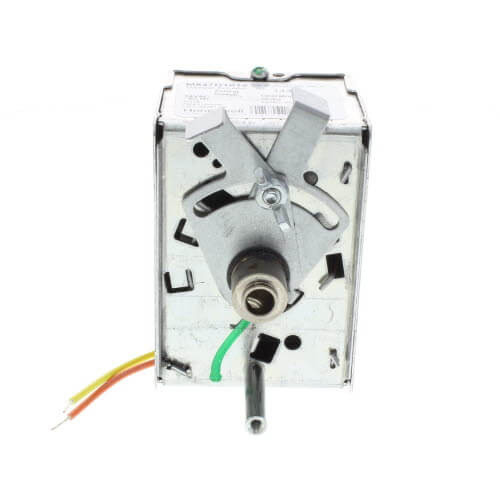

Replacement Honeywell M847d1012 Motorized Damper Actuator
Product specification
Motorized Damper Actuator for Honeywell M847D1004, M847D1012, and all Honeywell M847D Series Motors for ARD round dampers, RZ3-1M 680474058020. Zonefirst models ZDS, ZDB, and RTS. For normally open, as used with Honeywell and Trol-a-Temp zone control systems. 2-Wire Spring Return Actuator 24V with durable gears, and easy-to-remove black plastic covers. Replacement for Honeywell M847D1004, M847D1012, and all Honeywell M847D Series Motors for ARD dampers. Does not work with Honeywell ZD Rectangular Dampers. Replacement for Retrozone Replacement Damper Motor Actuator for Honeywell ARD ZD M847D 2 Wire Spring Motor RZ3-1M, 680474058020. Zonefirst replacement models ZDS, ZDB, and RTS. For use with dampers that are normally open, as used with Honeywell and Trol-a-Temp zone control systems.
Parameters
| Product Type: |
Replacement Honeywell M847d1012 Motorized Damper Actuator |
| Used With: |
ZD Series EARD Series ARD Series |
| Height: |
3-3/8" |
| Model: |
ZD Series |
| Application: |
Air Quality |
| Voltage: |
24v |
| Motor: |
Spring Return |
| Motor Mount: |
Direct Connection to Damper Shaft |
| Motor Timing: |
30 Seconds Power Closed 10 seconds Spring Return |
| Wires to Motor: |
2 |
| Replaces: |
M847D1004 |
Features
Low voltage, spring-return damper actuator
Equipped with anti-rotation and drive shaft extensions for direct mounting to 7/16 inch diameter coupling style dampers
Adjustable range stops
Direct replacement for M847D1004
