Product Details:
|
| Name: | M847d1012 Actuator Replacement | Motor: | Spring Return |
|---|---|---|---|
| Height: | 3-3/8 Inch | Application: | Air Quality |
| Voltage: | 24VAC, 50/60 Hz | Position: | Two Position |
| High Light: | Spring Return Damper Motor Actuator,Damper Motor Actuator M847d1012,honeywell m847d1012 actuator |
||

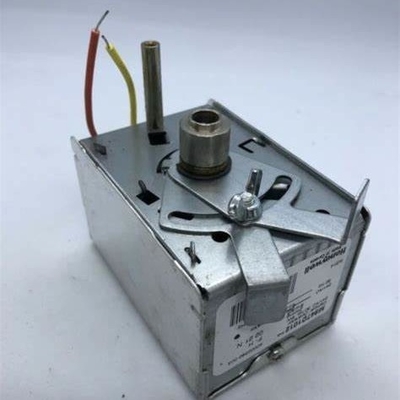

M847d1012 Actuator Replacement
M847d1012 Actuator Replacement specification
Parameters of M847d1012 Actuator Replacement
| Product Type: |
M847d1012 Actuator Replacement |
| Used With: |
ZD Series EARD Series ARD Series |
| Height: |
3-3/8" |
| Model: |
ZD Series |
| Application: |
Air Quality |
| Voltage: |
24v |
| Motor: |
Spring Return |
| Motor Mount: |
Direct Connection to Damper Shaft |
| Motor Timing: |
30 Seconds Power Closed 10 seconds Spring Return |
| Wires to Motor: |
2 |
| Replaces: |
M847D1004 |
Features
Quality tested for over 150K cycles for flawless operation. Heavy-duty motor with all METAL gears.
Low voltage, spring-return damper actuator
Equipped with anti-rotation and drive shaft extensions for direct mounting to 7/16 inch diameter coupling style dampers
Adjustable range stops
Direct replacement for M847D1004
