Product Details:
|
| Name: | Replacement Honeywell M847d1012 Actuator | Motor: | Spring Return |
|---|---|---|---|
| Height: | 3-3/8" | Material: | Metal |
| Voltage: | 24 Volts | Position: | Double Position |
| High Light: | Replacement honeywell m847d1012 actuator,Metal honeywell m847d1012 actuator,honeywell m847d1012 |
||

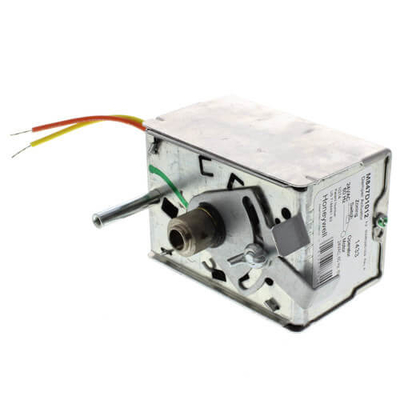

Replacement Honeywell M847d1012 Actuator
Product specification
Parameters of Honeywell M847d1012 Actuator
| Product Type: |
Replacement Honeywell M847d1012 Actuator |
| Used With: |
ZD Series EARD Series ARD Series |
| Height: |
3-3/8" |
| Model: |
ZD Series |
| Application: |
Air Quality |
| Voltage: |
24v |
| Motor: |
Spring Return |
| Motor Mount: |
Direct Connection to Damper Shaft |
| Motor Timing: |
30 Seconds Power Closed 10 seconds Spring Return |
| Wires to Motor: |
2 |
| Replaces: |
M847D1004 |
Features of Honeywell M847d1012 Actuator
Low voltage, spring-return damper actuator
Equipped with anti-rotation and drive shaft extensions for direct mounting to 7/16 inch diameter coupling style dampers
Adjustable range stops
Installation: Direct coupling to 5/16" damper shaft, works well on both NO and NC dampers.
