Product Details:
|
| Name: | Replace V4043A1705 Two Way Motorised Valve | Application: | Hydronic Control |
|---|---|---|---|
| Model: | V4043A1705 | Connection Type: | NPT |
| Body Pattern: | Two-way, Straight-through | Voltage: | 120 Vac |
| High Light: | V4043A1705 Motorised Zone Valve,Replace V4043A1705 Motorised Zone Valve,V4043A1705 |
||

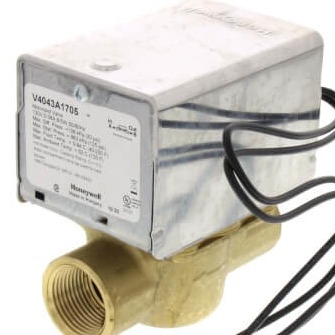

Replace V4043A1705 Two Way Motorised Valve
Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
Two way on-off line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water.
Parameters
| Item | Replace V4043A1705 Two Way Motorised Valve |
| Size: | 3/4" |
| Width (Inches): | 3-23/32" |
| Depth (Inches): | 2-3/8" |
| Height: | 4" |
| Material: | Brass |
| Flow Capacity (Cv): | 3.5 |
| Position: | Normally Closed |
| Voltage: | 120v |
| Capacity: | 3.5 Cv |
| Wiring: | 18" Leads |
| Body Pattern: | 2-Way |
| Hertz: | 60 |
| Max Ambient Temp (°F): | 125°F |
| Max Close-Off PSI: | 20 psi |
| Temperature Range (F): | 40°F - 200°F |
| Max Temp (F): | 200°F |
| Min Temp (F): | 40°F |
| Connection Type: | Threaded |
| Valve Action: | Spring Return to Close |
| Power Consumption: | 9.6 VA |
| Nominal Timing: | 15 Seconds |
| Static Pressure: | 125 psi |
| End Switch: | No |
Features
Note: Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
Two way on-off line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water.
