Product Details:
|
| Name: | V4043A1705 Normally Open 2 Port Valve | Material: | Brass |
|---|---|---|---|
| Model: | V4043A1705 2 Port Valve | Connection Type: | NPT |
| Body Pattern: | Two-way, Straight-through | Position: | Normally Closed |

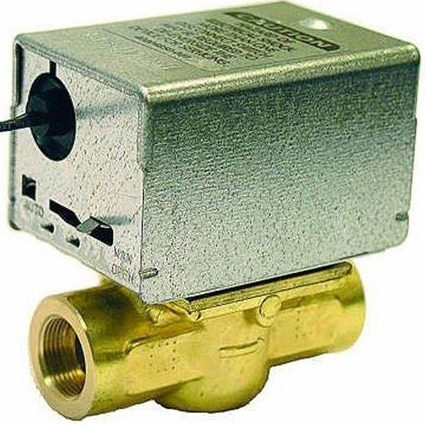

V4043A1705 Normally Open 2 Port Valve
Normally Open 2 Port Valve Specifications
V4043A1705 120V 3/4" Npt 2-Way N.C. Zone Valve Cv= 3.5
Item Typically Ships Within the Same Business Day
Brand-New Genuine Parts - Everytime
No Minimum Order Requirements
Normally Open 2 Port Valve Parameters
| Item | V4043A1705 Normally Open 2 Port Valve |
| Size: | 3/4" |
| Width (Inches): | 3-23/32" |
| Depth (Inches): | 2-3/8" |
| Height: | 4" |
| Material: | Brass |
| Flow Capacity (Cv): | 3.5 |
| Position: | Normally Closed |
| Voltage: | 120v |
| Capacity: | 3.5 Cv |
| Wiring: | 18" Leads |
| Body Pattern: |
2-Way Straight-Through |
| Hertz: | 60 |
| Max Ambient Temp (°F): | 125°F |
| Max Close-Off PSI: | 20 psi |
| Temperature Range (F): | 40°F - 200°F |
| Max Temp (F): | 200°F |
| Min Temp (F): | 40°F |
| Connection Type: | Threaded |
| Valve Action: | Spring Return to Close |
| Power Consumption: | 9.6 VA |
| Nominal Timing: | 15 Seconds |
| Static Pressure: | 125 psi |
| End Switch: | No |
Normally Open 2 Port Valve Features
Note: Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
Two way on-off line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water.
