Product Details:
|
| Name: | V4043A1705 | Application: | Hydronic |
|---|---|---|---|
| Model: | V4043A1705 | Connection Type: | NPT |
| UL Listed: | Yes | Temperature Range: | Up To 125 Deg F |
V4043A1705 3/4" NPT Connection Zone Valve (120v)
NPT Connection Zone Valve Specifications
Application: Hydronic
Color Finish: Metallic
Color Finish Category: Greys
Depth: 2-3/8 in
End Connection 1: NPT
End Connection 2: NPT
End Connections: NPT x NPT
FM Approved: No
Height: 4 in
IAPMO Listed: No
Length: 2-19/50 in
Material: Brass, Rubber, Stainless Steel
Material Type: Buna-N, EPDM
Maximum Pressure: 125 psi, 20 psi
Maximum Temperature: 200
Minimum Temperature: 40
NSF Certified: No
Origin: Global
Recommended Valve Application: Steam, Water
Temperature Range: Up to 125 Deg F
UL Listed: Yes
Valve Body Material: Brass
Valve Body Style: 2-way
Valve Material: Brass
Valve Seat Material: Brass
Valve Size: 3/4 in
Valve Type: Hydronic Zone Valve
Volts: 120V
Width: 3-23/32 in
NPT Connection Zone Valve Parameters
| Item | V4043A1705 3/4" NPT Connection Zone Valve (120v) |
| Size: | 3/4" |
| Width (Inches): | 3-23/32" |
| Depth (Inches): | 2-3/8" |
| Height: | 4" |
| Material: | Brass |
| Flow Capacity (Cv): | 3.5 |
| Position: | Normally Closed |
| Voltage: | 120v |
| Capacity: | 3.5 Cv |
| Wiring: | 18" Leads |
| Body Pattern: |
2-Way Straight-Through |
| Hertz: | 60 |
| Max Ambient Temp (°F): | 125°F |
| Max Close-Off PSI: | 20 psi |
| Temperature Range (F): | 40°F - 200°F |
| Max Temp (F): | 200°F |
| Min Temp (F): | 40°F |
| Connection Type: | Threaded |
| Valve Action: | Spring Return to Close |
| Power Consumption: | 9.6 VA |
| Nominal Timing: | 15 Seconds |
| Static Pressure: | 125 psi |
| End Switch: | No |
NPT Connection Zone Valve Features

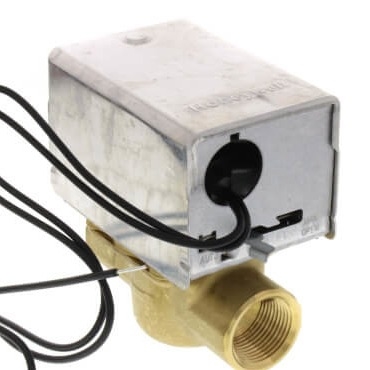

Note: Product pictures shown represent the general type of device listed. The model you select might not exactly match the photo.
