Replacement V8043e1012 Two Port Motorised Valve

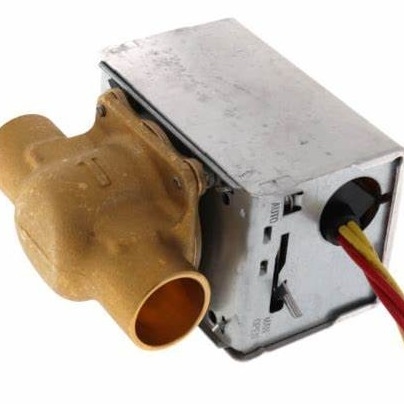

Large Image : Replacement V8043e1012 Two Port Motorised Valve

Product Details:

Place of Origin:	China
Brand Name:	YAHE
Model Number:	V8043E1012

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	USD1.00 per unit(on negotiation)
Packaging Details:	per unit in single inner box
Delivery Time:	25days
Payment Terms:	T/T
Supply Ability:	10000pcs monthly

Contact Now

Replacement V8043e1012 Two Port Motorised Valve

Description

Name:	Replacement V8043e1012 Two Port Motorised Valve	Static Pressure Rating:	125 Psi (862 KPa)
Connection Type:	Sweat	Body Pattern:	2-way
Auxilary Switch:	Yes	Voltage:	24VAC
Actuator Type:	Two-Position	Frequency:	50 Hz; 60 Hz
Wiring:	18''	Close-off Pressure:	40PSI
Materials:	Body: Brass; Seat: Brass; Stem: Stainless Steel	Installation:	After The Hot Water Boiler

Replacement V8043e1012 Two Port Motorised Valve

Parameters of V8043e1012 Two Port Motorised Valve

Weight 1.9000 lbs

Dimensions 5.0000 × 4.5000 × 3.6250 in

Pipe Size

3/4"/DN

Dimensions

4" high x 3-1/2" wide x 2-3/8" deep

Connection Type

Sweat

Body Pattern

Straight-through, Two-way

Ambient Temperature Range

125° F Max

Differential Pressure

20 psi (138 kPa)

Electrical Connections

18" leads

Capacity

3.5 Cv

Materials

Body: Brass; Seat: Brass; Stem: Stainless Steel

End Switch Rating

50 VA pilot duty @ 24 V; 4.4 A running with 26.4 A inrush @ 120 V

Frequency

50 Hz; 60 Hz

Static Pressure Rating

125 psi (862 kPa)

Manual Opener

Yes

Actuator Type

Two-Position

Valve Type

Zone Valve/Spring Return to Close

Applications of V8043e1012 Two Port Motorised Valve

1. Hydronic Control.

2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.

3. Valve designed for cycling (not constantly powered on)

Replacement V8043e1012 Two Port Motorised Valve 0

Quality Assurance

water tightness: 40psi by gas, no leaks

Package information

Name

Model No.

Size

package

Master case

G.W /kg

Pallet

zone valve

V8043E1012

3/4'' Sweat

1 piece

20pcs

27Cartons

FAQ

Q: customize logo accepted

A: yes,

Q: how about the order quantity and shipping

A: We have the warehouse in the USA, we can deliver the goods within one week

Q: Do you offer a guarantee for the products?

A: Yes, we offer 2 years warranty on our products. and it passed the recycled life test around 10,000times

Tag:

Contact Person: Junjia WEI

Tel: 15606867099

Fax: 86-576-87448190
