Product Details:
|
| Name: | Replacement Honeywell 8043e1012 | Pipe Size: | 3/4'' |
|---|---|---|---|
| Connection Type: | Sweat Connection | Body Pattern: | Two-way, Straight-through Body Pattern |
| Auxilary Switch: | Yes | Voltage: | 24 Vac; Power Consumption 7.7 VA |
| Position: | Normally Closed | Flow Capacity: | 3.5 CV Capacity |
| Wiring: | 18'' | Close-off Pressure: | 40PSI |
| Application: | Home Heating System | Installation: | After The Hot Water Boiler |
| High Light: | V8043e1012 Motorised Zone Valve,Motorised Zone Valve Sweat Connection,3/4'' motorized zone valve |
||

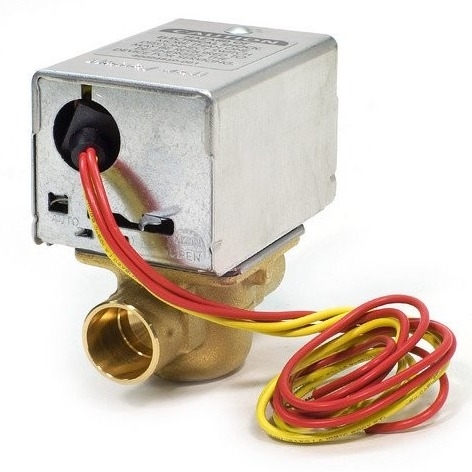

Replacement V8043e1012 Motorized Valve
V8043e1012 Motorized Valve Description
V8043e1012 Motorized Valve Parameters
| Part Number | Replacement V8043e1012 Motorized Valve |
|---|---|
| Item Weight | 1.56 pounds |
| Product Dimensions | 2.5 x 3.5 x 4 inches |
| Item model number | V8043E1012/U |
| Is Discontinued By Manufacturer | No |
| Material | Brass Body And Seat, Stainless Steel Stem, Buna-N |
| Thickness | 1 Inches |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
|
Applications
|
|
1. Hydronic Control. |
|
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water. |
|
3. Valve designed for cycling (not constantly powered on)
|
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks
|
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V8043E1012 | 3/4'' Sweat | 1 piece | 20pcs | 18 | 27Cartons |
