Product Details:
|
| Name: | Replacement Honeywell Motorized Valve V8043e1012 | Color Finish: | Metallic |
|---|---|---|---|
| Material: | Brass, Rubber, Stainless Steel | Body Pattern: | 2-way |
| Auxilary Switch: | Yes | Voltage: | 24VAC |
| Position: | Normally Closed | Flow Capacity: | 3.5CV |
| Wiring: | 18'' | Close-off Pressure: | 40PSI |
| Application: | Hydronic | Phase: | Single Phase |
| High Light: | V8043e1012 Motorised Zone Valve,Honeywell Motorised Zone Valve,3/4'' honeywell zone valve v8043e1012 |
||

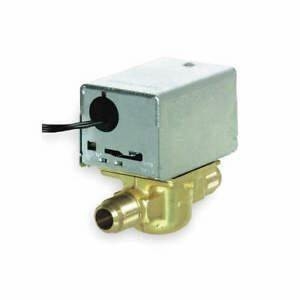

Replacement Honeywell Motorized Valve V8043e1012
Parameters of Honeywell Motorized Valve V8043e1012
AMP: 0.32
Application: Hydronic
Collection: V8043E
Color Finish: Metallic
Color Finish Category: Greys
End Connection 1: Sweat
End Connection 2: Sweat
End Connections: Sweat
Flow Rate: 3.5 gpm
Height: 4 in
Length: 2-3/8 in
Material: Brass, Rubber, Stainless Steel
Maximum Pressure: 125 psi
Maximum Temperature: 200
Minimum Temperature: 50
Origin: Global
Phase: Single Phase
Recommended Valve Application: Hydronics, Zoning
Temperature Range: Up to 125 Deg F
Type: HV8043E1012
UL Listed: Yes
Valve Body Material: Brass
Valve Body Style: 2-way
Valve Material: Brass
Valve Seat Material: Brass
Valve Size: 3/4 in
Valve Type: Hydronic Zone Valve
Volts: 24V
Width: 3-1/2 in
|
Applications
|
|
1. Hydronic Control. |
|
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water. |
|
3. Valve designed for cycling (not constantly powered on)
|
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks
|
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V8043E1012 | 3/4'' Sweat | 1 piece | 20pcs | 18 | 27Cartons |
FAQ
Q: customize logo accepted
A: yes,
Q: how about the order quantity and shipping
A: We have the warehouse in the USA, we can deliver the goods within one week
Q: Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty on our products. and it passed the recycled life test around 10,000times
