Product Details:
|
| Name: | Replacement Honeywell V8043e1012 | Body Pattern: | 2-way |
|---|---|---|---|
| Auxilary Switch: | Yes | Voltage: | 24VAC |
| Materials (Seat): | Brass | Flow Capacity: | 3 Kv |
| Materials (Stem): | Stainless Steel | Close-off Pressure: | 40PSI |
| Application: | Home Heating System | Installation: | After The Hot Water Boiler |
| High Light: | Manual honeywell motorized valve v8043e1012,honeywell motorized valve v8043e1012,2 Way v8043e1012 motorized valve |
||

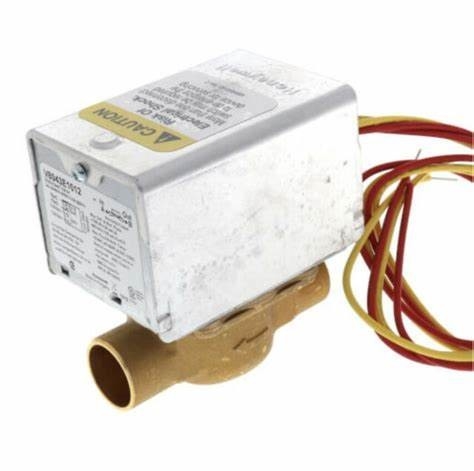

Replacement Honeywell V8043e1012
Product Description
• Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
• All models may be installed without disassembling the valve.
• Compact construction for easy installation.
• Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
• Actuator motor may be replaced without removing the valve body or draining the system.
Parameters
| Part Number | Replacement Honeywell V8043e1012 |
|---|---|
| Item Weight | 1.56 pounds |
| Product Dimensions | 2.5 x 3.5 x 4 inches |
| Item model number | V8043E1012/U |
| Is Discontinued By Manufacturer | No |
| Material | Brass Body And Seat, Stainless Steel Stem, Buna-N |
| Thickness | 1 Inches |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
|
Applications
|
|
1. Hydronic Control. |
|
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water. |
|
3. Valve designed for cycling (not constantly powered on)
|
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks
|
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V8043E1012 | 3/4'' Sweat | 1 piece | 20pcs | 18 | 27Cartons |
