Product Details:
|
| Name: | Replace V4043h1056 Honeywell Two Way Motorised Valve | Body Pattern: | 2-way |
|---|---|---|---|
| Voltage: | 220-240VAC, 50/60Hz | Weight: | 0.5 Kg |
| Flow Capacity: | 3.5CV | Manufacturers Code: | V4043H1056 |
| Max Close Pressure: | 40PSI | Type: | 2 Port Motorised Valve |
| High Light: | V4043h1056 honeywell two way motorised valve,240V honeywell two way motorised valve,220v two way motorised valve |
||

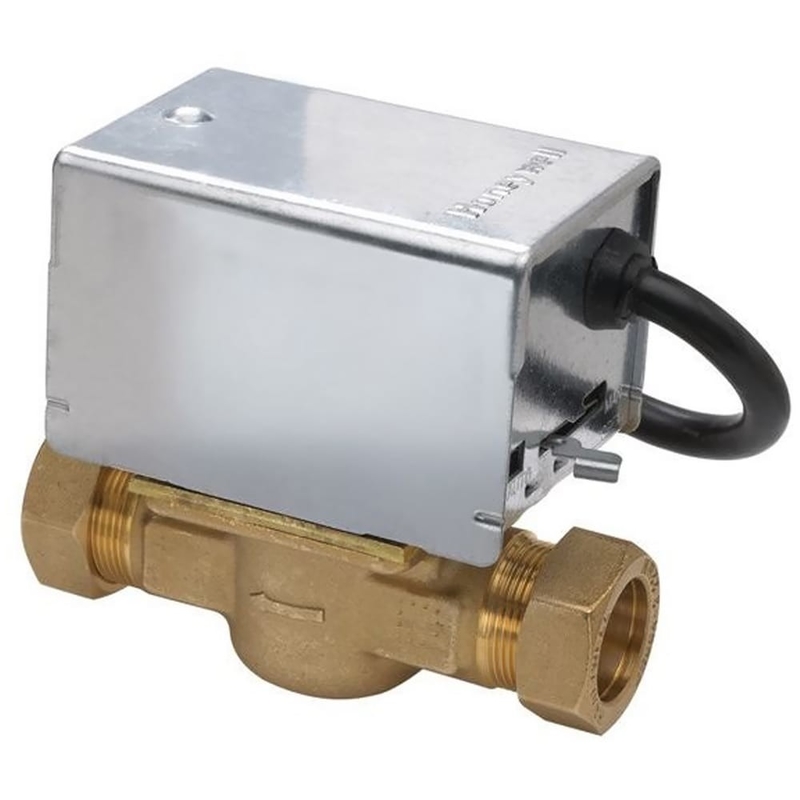

Replace V4043h1056 Honeywell Two Way Motorised Valve
V4043h1056 Description
2 port Motorised Valve
Motor open
Spring return action
Manual lever for filling & draining the systemPowerhead replaceable without draining down
Potential free end switch for electrical control of pump/boilerQuiet operation, minimal power consumption
V4043h1056 Parameters
| Item | Replace V4043h1056 Honeywell Two Way Motorised Valve |
| Power Supply: | 230 Volts AC 50Hz |
| Switch Rating : | 2.2A |
| Switch Type : | SPST (22mm) SPDT (28mm and 1") |
| Power Consumption : | 6W |
| Timings (Nominal) : | On: 12 seconds under power , Off: 6 seconds under spring return |
| Ambient Temperature : | 50°:C max |
| Flow Temperature : | 5°C to 88°C max(Special models available for chilled water applications) |
| Static Pressure : | 8.6 bar max |
| Flow Direction : | As per arrow on valve body |
| Electrical Connections : | 1m flying lead heat resistant cable |
| EC Directive : | Conforms to 89/336/EEC & 73/23/EEC |
| Pipe Connections : | 22mm Comp. |
| Auxiliary Switch : | S.P.S.T. K.V. : 6.9 |
| De-Energised State : | CLOSED |
| Differential Pressure for Close Off : | 0.55 bar max |
V4043h1056 Applications
1. Hydronic Control.
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.
3. Valve designed for cycling (not constantly powered on)
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V4043H1056 | 22m compression end | 1 piece | 20pcs | 18 | 27Cartons |
