Product Details:
|
| Name: | Replace V4043h1056 Honeywell 28mm 2 Port Zone Valve | Body Pattern: | 2-way |
|---|---|---|---|
| Max. Static Pressure:: | 8 Bar | Fluid Temperature:: | +5°C To +88°C |
| Flow Capacity: | 3.5CV | Cable Length:: | 1m |
| Reponse Closing: | 5 Seconds | Application: | Home Heating System |
| High Light: | V4043h1056 Motorised Zone Valve,2 Port Motorised Zone Valve,honeywell 28mm 2 port zone valve |
||

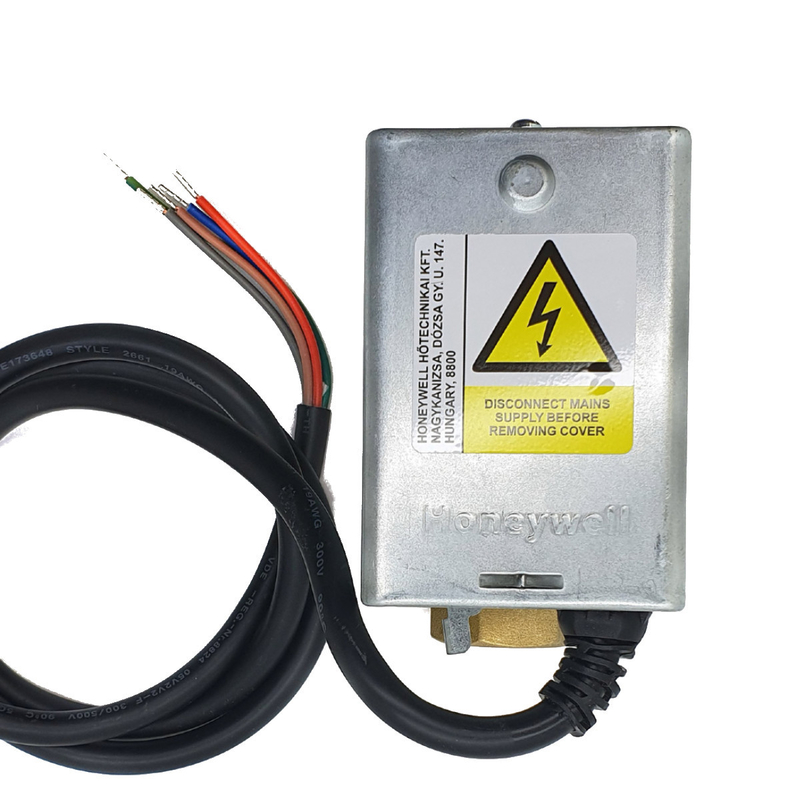

Replace V4043h1056 Honeywell 28mm 2 Port Zone Valve
Product Description
– Supply Voltage: 220-240VAC, 50/60Hz
– Power Consumption: 5W
– Cable Length: 1m
– Fluid Temperature: +5°C to +88°C
– Operating Temperature: 5°C to +50°C
– Flow Direction: As per arrow on valve body
– Auxiliary Switch Rating: 250VAC 4A
– Response Opening: 12 seconds
– Reponse Closing: 5 seconds
– Max. Static Pressure: 8 bar
– Max. Close-off Pressure: 1 bar
Applications of V4043h1056
1. Hydronic Control.
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.
3. Valve designed for cycling (not constantly powered on)
Options:
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V4043H1056 | 22m compression end | 1 piece | 20pcs | 18 | 27Cartons |
