Product Details:
|
| Name: | Replace Honeywell V4043h 1056 Zone Valve 22mm 240v | Body Pattern: | 2-way |
|---|---|---|---|
| Voltage: | 220V-240V | Position: | Normally Closed |
| Max Close Pressure: | 40PSI | Application: | House Heating System |
| High Light: | V4043h1056 Motorised Zone Valve,Motorised Zone Valve Honeywell,honeywell v4043h 1056 zone valve 22mm 240v |
||

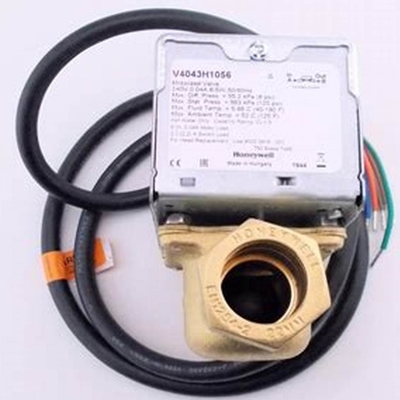

Replace Honeywell V4043h 1056 Zone Valve 22mm 240v
Product Description
The Replace Honeywell V4043h is an authentic Honeywell product, so you can be sure that it has been produced to provide maximum reliability and durability.
The Replace Honeywell V4043h is perfect for use in domestic and light commercial central heating systems and the 2 port Honeywell V4043 Valve comes with a wide range of flow control applications.
Parameters of Replace Honeywell V4043h
| Item | Replace Honeywell V4043h 1056 Zone Valve 22mm 240v |
| Power Supply: | 230 Volts AC 50Hz |
| Switch Rating : | 2.2A |
| Switch Type : | SPST (22mm) SPDT (28mm and 1") |
| Power Consumption : | 6W |
| Timings (Nominal) : | On: 12 seconds under power , Off: 6 seconds under spring return |
| Ambient Temperature : | 50°:C max |
| Flow Temperature : | 5°C to 88°C max(Special models available for chilled water applications) |
| Static Pressure : | 8.6 bar max |
| Flow Direction : | As per arrow on valve body |
| Electrical Connections : | 1m flying lead heat resistant cable |
| EC Directive : | Conforms to 89/336/EEC & 73/23/EEC |
| Pipe Connections : | 22mm Comp. |
| Auxiliary Switch : | S.P.S.T. K.V. : 6.9 |
| De-Energised State : | CLOSED |
| Differential Pressure for Close Off : | 0.55 bar max |
Applications
1. Hydronic Control.
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.
Options:
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V4043H1056 | 22m compression end | 1 piece | 20pcs | 18 | 27Cartons |
