Product Details:
|
| Name: | Replace Honeywell Motorized Valve V4043h1056 | Body Pattern: | Two Way |
|---|---|---|---|
| Voltage: | 220-240Volt, 50/60Hz | Position: | Normally Closed |
| Pressure: | 40PSI | Application: | Home Heating System |
| High Light: | 240V Motorised Zone Valve,220V Motorised Zone Valve,60Hz honeywell v4043h1056 |
||

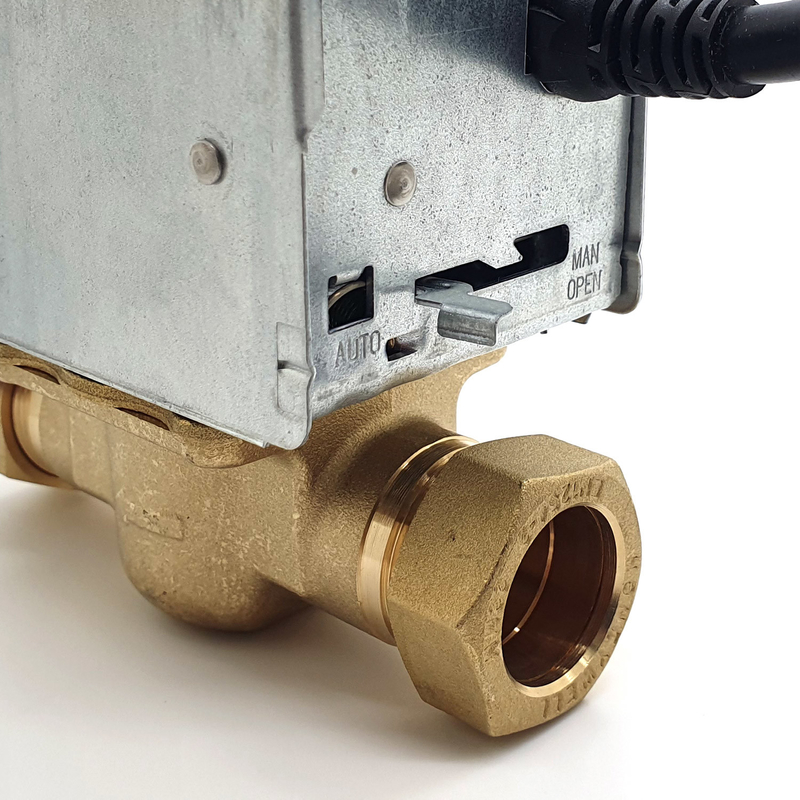

Replace Honeywell Motorized Valve V4043h1056
Product Description
V4043H 1056 - 22mm 2 Port Motorised Zone Valve
Part of V4043 range
Also known as Honeywell 272848.
Replace Honeywell Motorized Valve V4043h1056 features a long-life synchronous motor for smooth, quiet operation plus a convenient auxiliary end switch for switching between boiler, circulator pump, and other devices with a single zone valve.
Parameters
| Item | Replace Honeywell Motorized Valve V4043h1056 |
| Power Supply: | 230 Volts AC 50Hz |
| Switch Rating : | 2.2A |
| Switch Type : | SPST (22mm) SPDT (28mm and 1") |
| Power Consumption : | 6W |
| Timings (Nominal) : | On: 12 seconds under power , Off: 6 seconds under spring return |
| Ambient Temperature : | 50°:C max |
| Flow Temperature : | 5°C to 88°C max(Special models available for chilled water applications) |
| Static Pressure : | 8.6 bar max |
| Flow Direction : | As per arrow on valve body |
| Electrical Connections : | 1m flying lead heat resistant cable |
| EC Directive : | Conforms to 89/336/EEC & 73/23/EEC |
| Pipe Connections : | 22mm Comp. |
| Auxiliary Switch : | S.P.S.T. K.V. : 6.9 |
| De-Energised State : | CLOSED |
| Differential Pressure for Close Off : | 0.55 bar max |
Applications
1. Hydronic Control.
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.
3. Valve designed for cycling (not constantly powered on)
Options:
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
