Product Details:
|
| Name: | Replace V4043h 1056 Honeywell 2 Port Zone Valve 22mm | Body Pattern: | 2-way |
|---|---|---|---|
| Voltage: | 220-240VAC, 50/60Hz | Position: | Normally Closed |
| Flow Capacity: | 3.5CV | Wiring: | 1 Meter |
| Max Close Pressure: | 40PSI | Application: | Home Heating System |
| High Light: | 2 Port Motorised Zone Valve,60Hz Motorised Zone Valve,22mm 2 port zone valve |
||

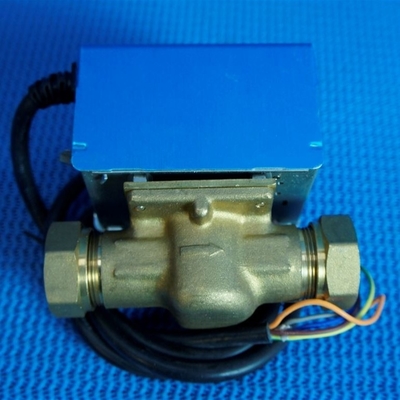

Replace V4043h 1056 Honeywell 2 Port Zone Valve 22mm
Product Description
The V4043H1056 Normally closed 22mm compression end copper connection zone valve is part of the Honeywell 1000 series, which is preferred among installers due to its ability to fit virtually every system, eliminating the need to stock a variety of valves. It features a long-life synchronous motor for smooth, quiet operation plus a convenient auxiliary end switch for switching between boiler, circulator pump, and other devices with a single zone valve.
Parameters
| Item | Replace V4043h 1056 Honeywell 2 Port Zone Valve 22mm |
| Power Supply: | 230 Volts AC 50Hz |
| Switch Rating : | 2.2A |
| Switch Type : | SPST (22mm) SPDT (28mm and 1") |
| Power Consumption : | 6W |
| Timings (Nominal) : | On: 12 seconds under power , Off: 6 seconds under spring return |
| Ambient Temperature : | 50°:C max |
| Flow Temperature : | 5°C to 88°C max(Special models available for chilled water applications) |
| Static Pressure : | 8.6 bar max |
| Flow Direction : | As per arrow on valve body |
| Electrical Connections : | 1m flying lead heat resistant cable |
| EC Directive : | Conforms to 89/336/EEC & 73/23/EEC |
| Pipe Connections : | 22mm Comp. |
| Auxiliary Switch : | S.P.S.T. K.V. : 6.9 |
| De-Energised State : | CLOSED |
| Differential Pressure for Close Off : | 0.55 bar max |
Applications
1. Hydronic Control.
2. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as s freshwater from a frequent source of makeup water.
3. Valve designed for cycling (not constantly powered on)
Options:
| Quality Assurance |
|
water tightness: 40psi by gas, no leaks |
|
Package information
|
||||||
| Name | Model No. | Size | package | Master case | G.W /kg | Pallet |
| zone valve | V4043H1056 | 22m compression end | 1 piece | 20pcs | 18 | 27Cartons |
