AC220V 110V 24V 12V Hysteresis Hansen Synchronous Motor 5/6W 50/60Hz C Mount For Vent Damper Time Stamps Valve Controls

Large Image : AC220V 110V 24V 12V Hysteresis Hansen Synchronous Motor 5/6W 50/60Hz C Mount For Vent Damper Time Stamps Valve Controls

Product Details:

Place of Origin:	China
Brand Name:	YAHE
Model Number:	C mount

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD1.00 per unit (on negotiation)
Packaging Details:	Standard package on shipping forms
Delivery Time:	10days
Payment Terms:	T/T
Supply Ability:	10000pcs monthly

Contact Now

AC220V 110V 24V 12V Hysteresis Hansen Synchronous Motor 5/6W 50/60Hz C Mount For Vent Damper Time Stamps Valve Controls

Description

Type:	AC Timing Motor	Voltage:	24V 110V 230V
Coil Watts:	3W,4W,5W,6W	Shaft Rotation:	CCW,CW
Model:	C Mount	Motor Speed:	50/60Hz
High Light:	Hysteresis Hansen synchronous motor , 12V synchronous motor , 24V hysteresis motor

AC220V 110V 24V 12V Sychrounous Hysteresis Hansen Motor 5/6W 50/60Hz C mount For vent damper Time Stamps valve controls

Production introduction

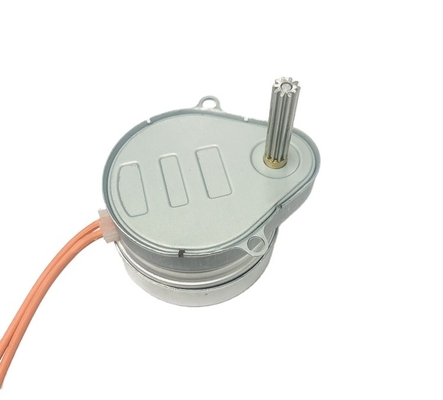

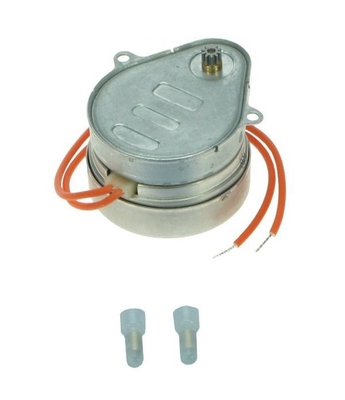

Shallow Pear Shaped Gearbox AC TIMING synchrounous C gear train box hysteresis motor

Motor Speed: Turns 600 RPM at 60 Hz and 500 RPM at 50 Hz
Impedance protected coils
Class B rated for insulation, Class F available as an option
AC voltage only
Motor speeds of 1 RPM and faster can be stalled without electrical or mechanical damage (as long as voltage supply is to spec)
Available Coil Wattages: 3 W, 4 W, 5 W, 6 W
Voltages from 12 V to 277 V available
Available in clockwise or counterclockwise rotation
Speeds from 360 to 12 revolutions per day available
Wide selection of output option offerings
Connector/terminals available
Available with operational 1-way clutch for resetting or 2-way clutch for gear train protection, in 6 RPM and slower speeds

Application

vent damper control

valve control

Time stamps

Synchron 600 Series for Hansen replacements STANDARD OPTION available
SHAFT rotation	Voltage	wattage	SPEED	OUTPUT TYPE
CW	24	3	1RPM	see tables or contact
CCW	110	4	2RPM
	220	5	3RPM
		6	4RPM
			5RPM
			6RPM
			10RPM

shaft customs	lead orientations

SHAFT design

all shaft and gear will be customized according to the design or requirement
