R22000 Multichoice Universal With Integrated Diverter Rough

Replacement R22000 Multichoice Universal With Integrated Diverter Rough

R22000 Multichoice Universal Description

• keeps water temperature within a safe plus/-3 Degree F ( plus/-1.6 Degree C), helping to protect you from sudden changes in hot or cold water pressure
• Rough-in only
• One-piece forged valve body without stops
• Back-to-back installation capability
• For use with 13/14S, 17S, or 17T showering models. 1/2 inch outlets and connections. Standard installation accommodates finished wall thickness up to 1 1/8 inch

R22000 Multichoice Universal Features

• Forged brass body
• Back-to-back installation capabilities
• Three port diverter
• Plug provided for 3 setting diverter installation
• Thick wall kits can be ordered for finish wall up to 2-1/8" (model varies with valve type)
• Covered under 's limited lifetime residential or 5 year limited commercial warranty
• Please Note: for 2 applications the Right port MUST be capped
• No tub outlet

compatible with cartridges series		Optional installation	The heat-resistant pressure test cap (included) allows for air or water testing before valve cartridge is installed.

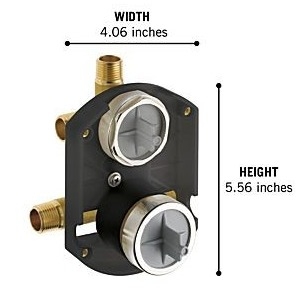

Dimension
