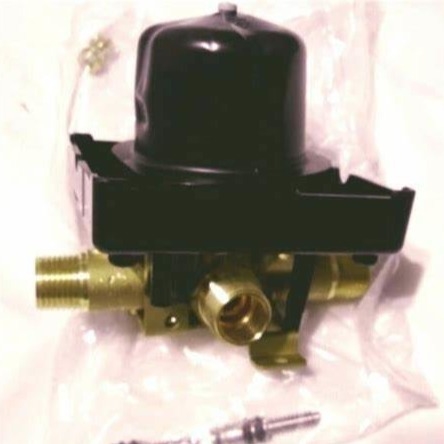

1/2'' NPT R10000-UNWS Tub And Shower Rough In Valve

Equivalent R10000-UNWS Tub And Shower Rough In Valve

Description

R10000-UNWS Tub And Shower Rough In Valve

• Backed by 's Lifetime Limited Warranty
• All brass construction; forged from solid brass stock
• Accepts single or dual pressure balance or dual thermostatic cartridge
• Cartridge ships with trim - works with 13/14, 17 and 17T series trims
• UN Universal type fitting is 1/2" NPT male thread with 1/2" C.W.T. female sweat
• WS with service stops
• Sturdy mounting bracket included - prevents rocking and allows for securing to stringers
• Square plaster guard, the size of a standard tile allows for right-angle cuts. Removable and snaps back into place
• Heat-resistant pressure test cap for air/water testing before cartridge is installed
• Back-to-back installation capabilities
• Optional extension kit 13/14 series RP77991
• Optional extension kit 17 series RP77992
• Optional extension kit 17T series RP75136

Parameters of R10000-UNWS Tub And Shower Rough In Valve

compatible with cartridges series		R10000-UNWS Tub And Shower Rough In Valve have back-to-back installation capability for use in multi-unit buildings.	The heat-resistant pressure test cap (included) allows for air or water testing before valve cartridge is installed.	The mounting bracket reduces rocking by providing a sturdy means of securing the valve to a stringer. The square plaster guard allows for simple 90° cuts and snaps into place.
