WhisperFit FV-0511VF1 Ceiling Exhaust Fan bathroom Dc Exhaust Fan

I'm Online Chat Now

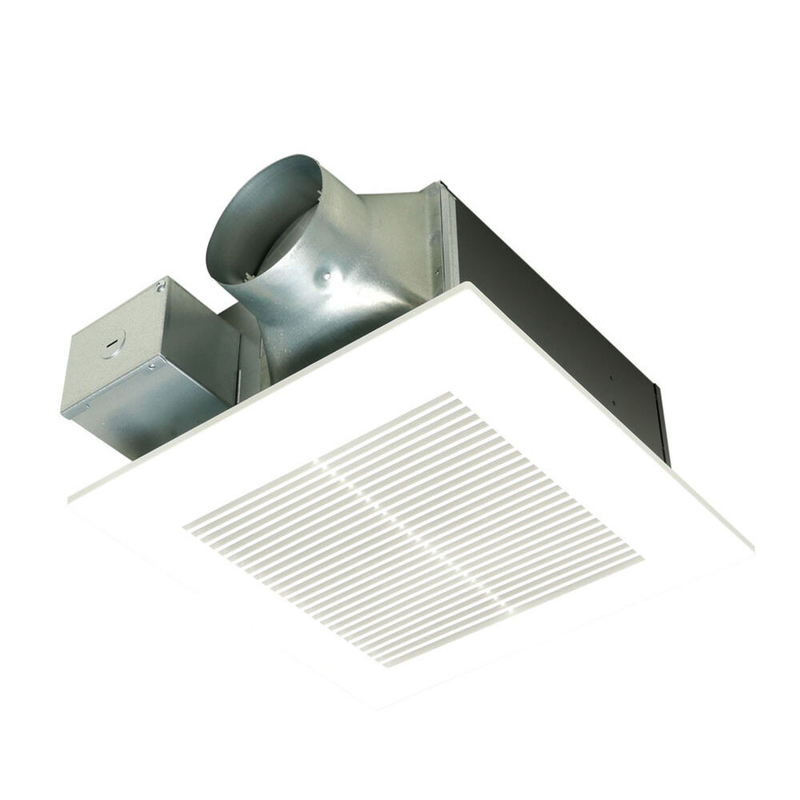

WhisperFit FV-0511VF1 Ceiling Exhaust Fan bathroom Dc Exhaust Fan

WhisperFit FV-0511VF1 Ceiling Exhaust Fan bathroom Dc Exhaust Fan
WhisperFit FV-0511VF1 Ceiling Exhaust Fan bathroom Dc Exhaust Fan

Large Image :  WhisperFit FV-0511VF1 Ceiling Exhaust Fan bathroom Dc Exhaust Fan

Product Details:
Place of Origin: China
Brand Name: YAHE
Certification: ETL
Model Number: FV-0511VF1 WhisperFit Dc Exhaust Fan
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD1.00 per unit (on negotiation)
Packaging Details: one piece in sigle box
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 10000pcs monthly

WhisperFit FV-0511VF1 Ceiling Exhaust Fan bathroom Dc Exhaust Fan

Description
Model: FV-0511VF1 WhisperFit Dc Exhaust Fan Application: Bathroom
Air Volume Supply (CFM): @0.1= 110, 80, 50 @0.25= 111, 80, 50 @0.375= 109, 84, 50 Noise (Sones): @0.1"SP (110,80,50 CFM) = 0.8, 0.3, <0.3 @0.25"SP(110,80,50 CFM) = 1.2, 0.8, 0.4
Duct Size: 4" Round Motor Type: ECM
Sones: 0.4, 0.8, 1.2 Wattage: 17.9W
High Light:

50 cfm Ceiling Exhaust Fan

,

Ceiling Exhaust Fan Bathroom

,

80 cfm Dc Exhaust Fan

FV-0511VF1 WhisperFit Dc Exhaust Fan​



Product details



FV-0511VF1 WhisperFit Dc Exhaust Fan is an ideal retrofit solution. Built-in energy efficient ECM (DC) motor with Pick-A-Flow™ airflow selector allows you to select required airflow (50, 80 or 110 CFM). Single-hinged Flex-Z Fast® bracket, pre-installed alignment guides, and temporary clip allows for flexible, fast and easy installation. Can be used to comply with the latest codes and standards.

  • Revolutionary ECM motor with SmartFlow™ Technology ensures optimal CFM output
  • Built-in Pick-A-Flow™ airflow selector allows you to select your required airflow of 50, 80, or 110 CFM with a simple flip of a switch
  • Single-hinged Flex-Z Fast® bracket provides flexible, fast and easy installation
  • Low profile 5-5/8 housing depth fits in 2 x 6 joist size or larger
  • Can be used to comply with ASHRAE 62.2, LEED, IAP and California Title 24





Specifications
  • CFM: 50, 80, 110
  • Sones: 0.4, 0.8, 1.2
  • Duct Size: 4" Round
  • Grille Width: 13"
  • Grille Length: 13"
  • Housing Width: 10-1/4"
  • Amperage: 0.17, 0.22, 0.28A
  • Voltage: 120V
  • Wattage: 17.9W



Features:



  • Ventilation Fan
  • Ideal as a Retrofit Solution
  • 50-80-110 CFM Airflow
  • Single-Hinged Flex-Z Fast® Bracket
  • SmartFlow™ Technology
  • Revolutionary ECM Motor
  • Low-Profile 5-5/8" Housing Depth
    - Fits in 2 x 6 Joist Size or Larger
  • Can Be Used to Comply with ASHRAE 62.2, LEED, IAP & California Title 24
