Product Details:
|
| Name: | 3/4''X22mm Water Heater T&P Relief Valve SABS Tested | Exterior Finish : | Bronze |
|---|---|---|---|
| Material: | Brass | Size: | 3/4''BSP |
| Inlet Connection Type: | National Pipe Tapered | Outlet Connection Type: | MNPT |
| High Light: | SABS Tested T And P Valves,T And P Valves 3/4'',t&p relief valve water heater |
||

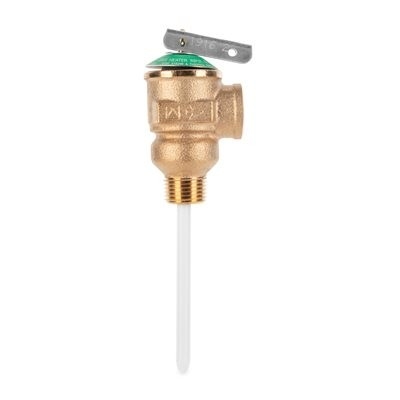

3/4''X22mm Water Heater T&P Relief Valve SABS Tested
Used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. Features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. ASME rated and CSA listed. Temperature Relief: 210 degrees F (99 degrees C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar).
How a T&P Valve Is Installed
When you purchase a water heater, the T&P valve generally comes pre-installed. A threaded inlet is welded onto the side of the tank. This inlet cannot be removed or replaced. The T&P valve is screwed clockwise onto that inlet.
While those items are already in place, the discharge tube running downward along the side of the tank is not pre-installed.
| production photo | |
|
|
 |
FAQ
Q: customize logo accepted
A: yes,
Q: how about the order quantity and shipping
A: goods will be shipped within 20days while the order confirmed
Q: Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty on our products. and it passed recycled life test around 10,000times
